Catalog Number: CPF40BS
Finish: BRUSHED STAINLESS


  • Works with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings

  • For 3/8" or 1/2" (10 or 12 mm) Glass

  • Use Monolithic Tempered Glass

    		•

    The Sidelite Mounted Transom Curved Patch is used to support a transom from a sidelite glass panel. It comes with a 1NT300 Top Insert for door mounting. On the non-hinged side the Insert can be removed, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.



    CRL Brushed Stainless Sidelite Mounted Transom Curved Patch





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION COLOR
    CPF40BS CRL Brushed Stainless Sidelite Mounted Transom Curved Patch

    Catalog Number:CPF40BS
    Also Available in These Catalogs:
    AH18 Architectural Hardware Catalog 2018, PAGE 224Z
    CRL63A Architectural Hardware Master, PAGE 366H
    CRL93A Architectural Hardware, PAGE CH135
    Color:Brushed Stainless
    Length:9-25/32" (248 mm)
    Height:4-3/16" (106 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:3 lb (1.36kg)
    Minimum Order:1 Each

    GLASS FABRICATION REQUIRED:
    Three 3/4" (19 mm) Diameter
    Holes and Corner Notch

    COMES WITH:
    Template and Instructions
    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.

    CPF10CBS
    CRL Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert

    CPF20BBS
    CRL Brushed Stainless Curved Top Door Patch Fitting with 1NT304 Insert

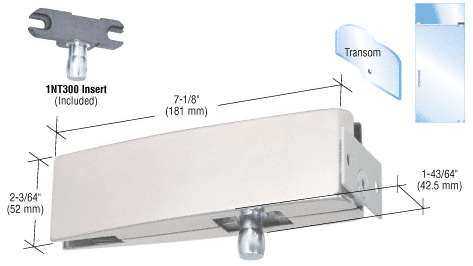

    CPF34BS
    CRL Brushed Stainless Wall Mount Transom Curved Patch

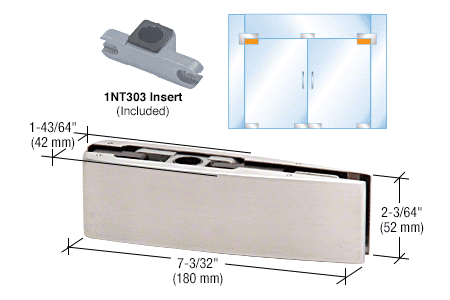

    CPF20ABS
