LS14BS - CRL Brushed Stainless Laguna Series Pivot Door for Use With Free-Swinging Doors
C.R.Laurence
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF


View Larger Image

Catalog Number: LS14BS
Finish: BRUSHED STAINLESS


  • All 316 Alloy Brushed Stainless Steel Construction

  • Ideal for Interior Room Applications

  • For Use with 3/8" (10 mm) or 1/2" (12 mm)Tempered Glass
  • Comes with All Fasteners Needed for Either Flush Mount (Countersunk) or Surface Mount (Straight Hole) Glass Fabrication

  • Our CRL Laguna Series Hardware brings a contemporary look to interior home or office partitions. Made of high-grade 316 alloy stainless steel, it will give years of reliable function and modern beauty to your projects.



    CRL Brushed Stainless Laguna Series Pivot Door for Use With Free-Swinging Doors





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION COLOR
    LS14BS CRL Brushed Stainless Laguna Series Pivot Door for Use With Free-Swinging Doors

    Catalog Number:LS14BS
    Also Available in These Catalogs:
    AH18 Architectural Hardware Catalog 2018, PAGE 189Z
    USAL14 U.S. Aluminum Architectural Design Manual, PAGE 19G1
    CRL63A Architectural Hardware Master, PAGE 349H
    CRL53R Glass & Glazing Catalog, PAGE 535G
    CRL93A Architectural Hardware, PAGE CH141
    Color:Brushed Stainless
    Ship Via:Can Ship UPS
    Shipping Weight:8 lb (3.63kg)
    Minimum Order:1 Each

    The CRL Laguna Pivot Door System can be used with free-swinging doors, or doors controlled by floor mounted door closers. The hardware can be ordered in sets or by individual components.

    CRL provides you with all of the Glass Fasteners for either flush mounting, which requires a countersunk hole, or surface mounting, where a straight hole is needed. The Glass Fasteners will accommodate either 3/8" (10 mm) or 1/2" (12 mm) tempered glass. Laminated glass cannot be used with this type of hardware.

    Standardized sets allow easy planning and purchasing for a number of basic configurations. Available accessories give you the opportunity to customize the standard sets to accommodate the most imaginative designers.

    The LS14BS Hardware Set consists of:
    1 each LS1BS Free-Swinging Top Pivot

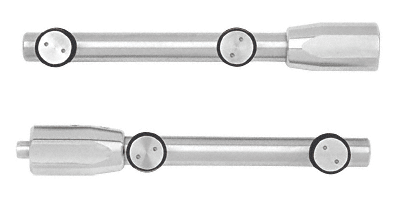

    1 each LS5BS Top and Bottom Pivot Rod Set
    (Closers or Bottom Pivots are sold separately.)

    NOTE: Care should be taken when using this system in exterior applications to ensure that air and water infiltration can be minimized.

    For additional information, contact CRL Technical Sales Department.

    System Limitations:
  • Maximum Door Weight: 176 Lbs. (80 kg)
  • Maximum Panel Width: 47-1/4" (1.2 m)
  • Maximum Panel Height: 98-7/8" (2.5 m)

  • NOTE: These Fittings are not for use with Laminated Glass. System Limitations: Maximum Door Weight:176 Lbs. (80 kg) Maximum Panel Width:47-1/4" (1.2 m) Maximum Panel Height:98-7/8" (2.5 m)
