PT2034BS - DORMAKABA® Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
C.R.Laurence
 YOUR ACCOUNT               VIEW CART                SIGN INSIGN OFF
Search


View Larger Image

Catalog Number: PT2034BS
Finish: BRUSHED STAINLESS


  • For 3/4" (19 mm) Glass
  • Use Monolithic Tempered Glass
  • 304 Alloy Stainless Steel Covers

  • 2-3/4" (70 mm) Pivot Setback

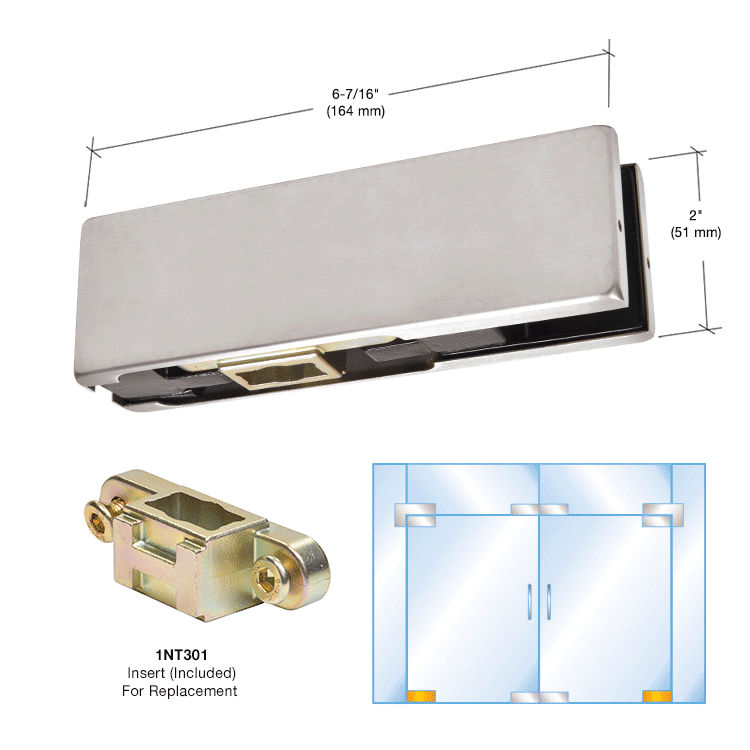

  • DORMAKABA® Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.



    DORMAKABA® Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION COLOR
    PT2034BS DORMAKABA® Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
    PT2034MBL DORMAKABA® Matte Black Top Door Patch Fitting with Pivot Insert For 3/4" Glass
    PT2034PS DORMAKABA® Polished Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass

    Catalog Number:PT2034BS
    Also Available in These Catalogs:
    AH18 Architectural Hardware Catalog 2018, PAGE 226Z
    CRL93A Architectural Hardware, PAGE CH136
    Color:Brushed Stainless
    Ship Via:Can Ship UPS
    Minimum Order:1 Each

    The following guidelines are to be used when making a door using this hardware:

    Maximum Height: 102" (2.59 m)
    Maximum Weight: 194 lbs. (88 kg)
    Maximum Width: 42" (1.09 m)

    If the door exceeds any of these limitations, full door rails should be used.

    GLASS FABRICATION REQUIRED:
    One 3/4" (19 mm) Diameter
    Hole and Corner Notch

    COMES WITH:
    Template and Instructions
