View Larger Image

Catalog Number: SCU4CH
Finish: CHROME


  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Glass Fabrication: 5/8" or 3/4" (16 or 19 mm) Hole in Panel

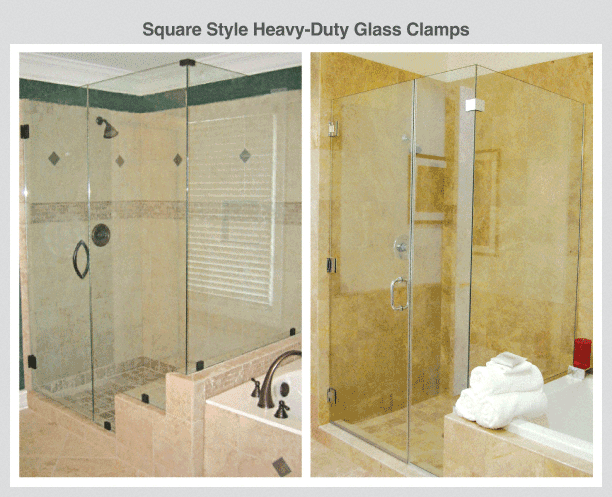

  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
  • Use Monolithic Tempered Glass

  • CRL Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.



    CRL Polished Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION COLOR
    SCU4CH CRL Polished Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4GM CRL Gun Metal Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4BR CRL Polished Brass Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU40RB CRL Oil Rubbed Bronze Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU48CH CRL Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4ABR CRL Antique Brass Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4ABRZ CRL Antique Bronze Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4BBRZ CRL Brushed Bronze Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4BN CRL Brushed Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4BSC CRL Brushed Satin Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4GP CRL Gold Plated Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4MBL CRL Matte Black Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4PN CRL Polished Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4SB CRL Satin Brass Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4SC CRL Satin Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4SN CRL Satin Nickel Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4ULBR CRL Unlacquered Brass Square Style Hole-in-Glass Fixed Panel U-Clamp
    SCU4W CRL White Square Style Hole-in-Glass Fixed Panel U-Clamp

    Catalog Number:SCU4CH
    Also Available in These Catalogs:
    SD16 Frameless Shower Door Hardware 2015, PAGE 182S
    CRL53R Glass & Glazing Catalog, PAGE 266G
    CRL23R Frameless Shower Door and Mirror Hardware, PAGE 274J
    CRL93A Shower Door, PAGE SD086
    Color:Chrome

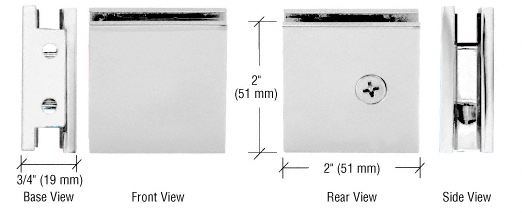

    Width:2" (51 mm)
    Height:2" (51 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:8 oz (227g)
    Minimum Order:1 Each

    SPECIFICATIONS:
    Materials: Solid Brass
    Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
    Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
    Includes: Mounting Screws and Gaskets
