View Larger Image

Catalog Number: GT02


  • Capacity 600 Lbs. (272 kg)

  • Self-Clamping Action Locks Loads Up to 2" (51 mm) Thick

  • One Person Can Load and Maneuver


  • The CRL Glasstrax Glass Dolly makes it easier than ever to move heavy glass lites smoothly and safely. Load your glass centered on the Glasstrax and the weight of the glass will automatically pull the rubber lined sidewalls together, clamping it in place. The more weight loaded, the tighter the grip. Self-adjusting for glass up to 2" (51 mm) thick.



    CRL Glasstrax Glass Dolly





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION
    GT02 CRL Glasstrax Glass Dolly

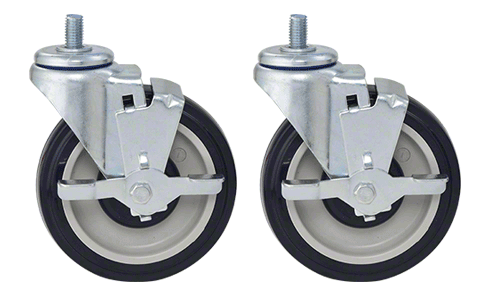

    GT02XLCPE CRL Replacement Front Locking Caster Set for GT02

    Catalog Number:GT02
    Also Available in These Catalogs:
    CRL73R Tools, Machinery, and Equipment, PAGE 226K
    CRL23R Frameless Shower Door and Mirror Hardware, PAGE 562J
    CRL83R Door and Window Replacement, PAGE 851W
    GG2014A European Glass & Glazing, PAGE E015
    GMB15 Glass Machinery Brochure, PAGE MB06
    Capacity:600 Lbs. (272 kg)
    Ship Via:UPS Oversize Rate
    Shipping Weight:75 lb (34.02kg)

    The 26" (660 mm) wide footprint maneuvers the load easily with a tight turning radius. Big 12-1/4" (311 mm) diameter maintenance-free tires let you roll over obstacles such as hoses and electrical cords that would normally prohibit the safe transport of glass with front locking caster wheels. When you reach your unloading location, just lift the glass to automatically release the clamp. Made from top quality tubular steel to withstand daily use. All wheels are secured with cotter pins for added safety. A built-in pull handle lets you move the CRL Glasstrax when unloaded, and its small size makes storage convenient. Great for carrying table tops, bullet resistant glazing, or any heavy sheet material in your shop or on the job site.

    SPECIFICATIONS:
  • Maximum Capacity: 700 Lbs. (317.5 kg)
  • Maximum Thickness: 2" (51 mm)
  • Ship Weight: 67 Lbs. (30.4 kg)
  • Additional distance measurements: From the floor to the bottom frame of the GT02: 3-3/4" (95.3 mm)
  • From the floor to the bottom of a piece of glass in the GT02: 7-1/4" (184 mm)

    NOTE: approximately; the glass could be tilted a little up or down from one side to the other.
  • From the floor to the top of the GT02 when it is loaded: 19-1/2" (495 mm)
  • From the floor to the top of the GT02 with no load: 21-1/2" (546 mm)


  • Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. ColorsColours can vary depending on your computer's video card and on how your monitor's colorcolour is adjusted.
