Catalog Number: V1E037CH
Finish: POLISHED CHROME


  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
  • Use Monolithic Tempered Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin

  • CRL Vienna Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.



    CRL Polished Chrome Vienna 037 Series Wall Mount Hinge





    Other Products/Finishes:

    CATALOG NUMBER DESCRIPTION COLOR
    V1E037CH CRL Polished Chrome Vienna 037 Series Wall Mount Hinge
    V1E037MBL CRL Matte Black Vienna 037 Series Wall Mount Hinge
    V1E037BR CRL Polished Brass Vienna 037 Series Wall Mount Hinge
    V1E0370RB CRL Oil Rubbed Bronze Vienna 037 Series Wall Mount Hinge
    V1E037ABC0 CRL Antique Brushed Copper Vienna 037 Series Wall Mount Hinge
    V1E037ABN CRL Antique Brushed Nickel Vienna 037 Series Wall Mount Hinge
    V1E037ABR CRL Antique Brass Vienna 037 Series Wall Mount Hinge
    V1E037ABRZ CRL Antique Bronze Vienna 037 Series Wall Mount Hinge
    V1E037AW CRL All White Vienna 037 Series Wall Mount Hinge
    V1E037BBRZ CRL Brushed Bronze Vienna 037 Series Wall Mount Hinge
    V1E037BN CRL Brushed Nickel Vienna 037 Series Wall Mount Hinge
    V1E037BSC CRL Brushed Satin Chrome Vienna 037 Series Wall Mount Hinge
    V1E037GM CRL Gun Metal Vienna 037 Series Wall Mount Hinge
    V1E037GP CRL Gold Plated Vienna 037 Series Wall Mount Hinge
    V1E037PN CRL Polished Nickel Vienna 037 Series Wall Mount Hinge
    V1E037SB CRL Satin Brass Vienna 037 Series Wall Mount Hinge
    V1E037SC CRL Satin Chrome Vienna 037 Series Wall Mount Hinge
    V1E037SN CRL Satin Nickel Vienna 037 Series Wall Mount Hinge
    V1E037ULBR CRL Unlacquered Brass Vienna 037 Series Wall Mount Hinge

    Catalog Number:V1E037CH
    Also Available in These Catalogs:
    SD16 Frameless Shower Door Hardware 2015, PAGE 120S
    CRL23R Frameless Shower Door and Mirror Hardware, PAGE 154J
    CRL93A Shower Door, PAGE SD023
    Color:Polished Chrome
    Height:3-15/16" (100 mm)
    Width:2-1/4" (57 mm)
    Ship Via:Can Ship UPS
    Shipping Weight:1 lb (454g)
    Minimum Order:1 Each

    STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

    CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

    Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

    Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

    SPECIFICATIONS:
    Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
    Construction: Solid Brass
    Hinge Swings: 90 degree In and 90 degree Out
    Closing Type: Self-Centering when within 15 degree of closed position.
    Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel

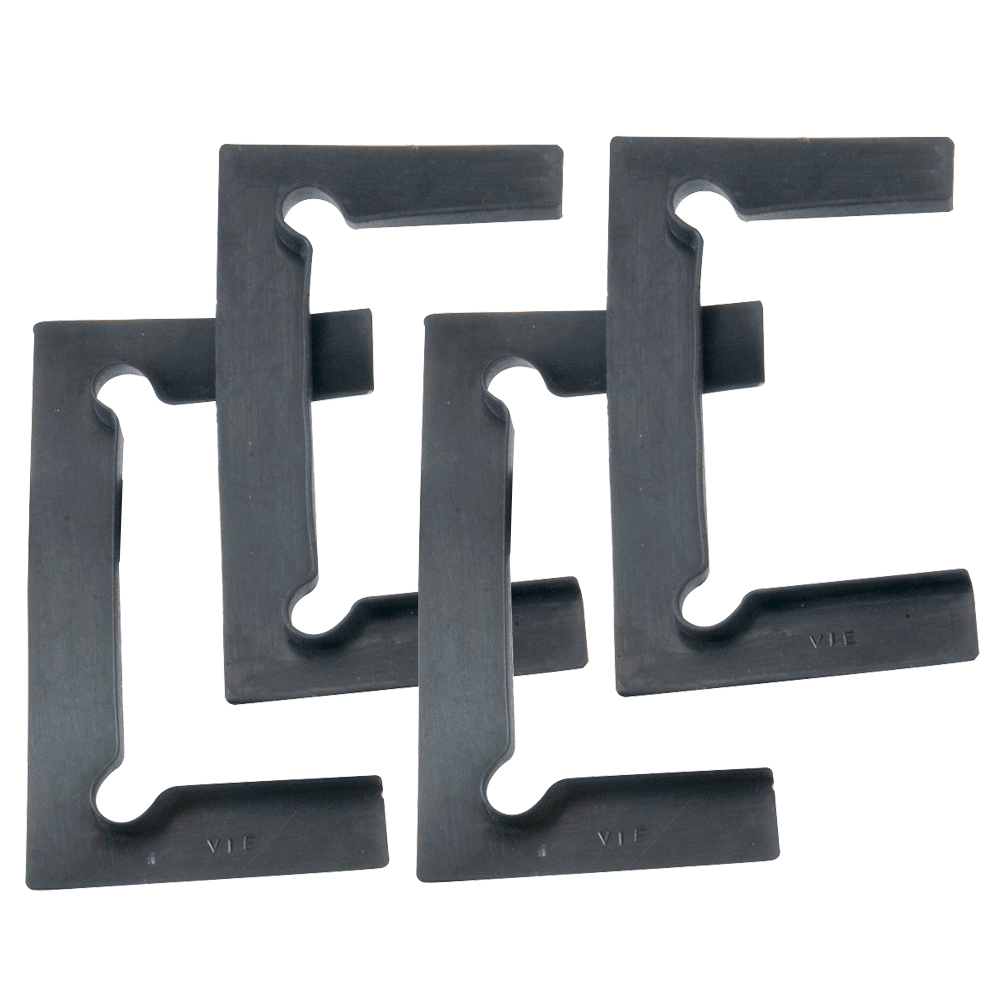

    Includes: Gaskets, Screws, and Glass Fabrication Dimensions

    Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.

    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
